Architecture

STAC Catalog Structure

Three collections, all items use MLM Extension and Version Extension

Catalog hierarchy
Catalog: fair-models
|
+-- Collection: base-models
|     Model blueprints contributed via PR.
|     Each item = complete model card (weights, code, Docker, MLM spec).
|     Versioned by contributors, registered via CLI utility.
|     |
|     +-- Item: unet-segmentation (v1)           category: semantic-segmentation
|     +-- Item: resnet18-classification (v1)      category: classification
|     +-- Item: yolo11n-detection (v1)            category: object-detection
|
+-- Collection: local-models
|     Finetuned models produced by ZenML pipelines.
|     Only promoted (production) versions appear here.
|     |
|     +-- Item: unet-segmentation-finetuned-banepa-v2   (production, latest-version)
|     +-- Item: unet-segmentation-finetuned-banepa-v1   (deprecated: true)
|     +-- Item: yolo11n-detection-finetuned-banepa-v1   (production)
|
+-- Collection: datasets
      Training data registered via fAIr UI/backend.
      |
      +-- Item: buildings-banepa-segmentation    category: semantic-segmentation
      +-- Item: buildings-banepa-detection       category: object-detection
What STAC Items Contain

All fields are from existing STAC/MLM standards. Custom fair:* fields are avoided wherever a standard exists.

Base model item

See models/unet_segmentation/stac-item.json for a complete example. All three base models (unet_segmentation, resnet18_classification, yolo11n_detection) follow this structure.

Key properties: mlm:name, mlm:architecture, mlm:tasks, mlm:framework, mlm:input (with pre_processing_function), mlm:output (with post_processing_function and classification:classes), mlm:hyperparameters, keywords.

Key assets: model (weights), source-code (with mlm:entrypoint), training-runtime / inference-runtime (Docker image or "local").

The mlm:entrypoint tells the backend which Python function to call. pre_processing_function / post_processing_function are standard MLM Processing Expression fields.

Local model item

Same MLM fields as base model, plus:

  • derived_from link pointing to the base model item
  • derived_from link pointing to the dataset item used for training
  • mlm:model asset pointing to S3 finetuned weights
  • Runtime assets reference the same Docker image as parent base model
  • Version Extension: version, deprecated, predecessor-version / successor-version / latest-version links
  • mlm:hyperparameters reflects the actual training params used

Dataset item

Label + file extensions. Properties: label:type, label:tasks, label:classes, keywords. Assets: chips (image directory), labels (GeoJSON).

Tagging and Classification

Concept Standard field Example values
ML task mlm:tasks semantic-segmentation, object-detection
Feature type tags keywords (STAC core) building, road, tree
Output geometry keywords (STAC core) polygon, line, point
Output classes classification:classes {name: "building", value: 1}
Dataset label type label:type (Label ext) vector, raster
Dataset label task label:tasks (Label ext) segmentation, detection
Pre/post processing pre_processing_function / post_processing_function (MLM) Python entrypoint

Compatibility Validation

Warning

The backend validates that a base model and dataset are compatible before triggering finetuning. Validation is based on matching keywords and mlm:tasks / label:tasks between the model and dataset STAC items.

Flows

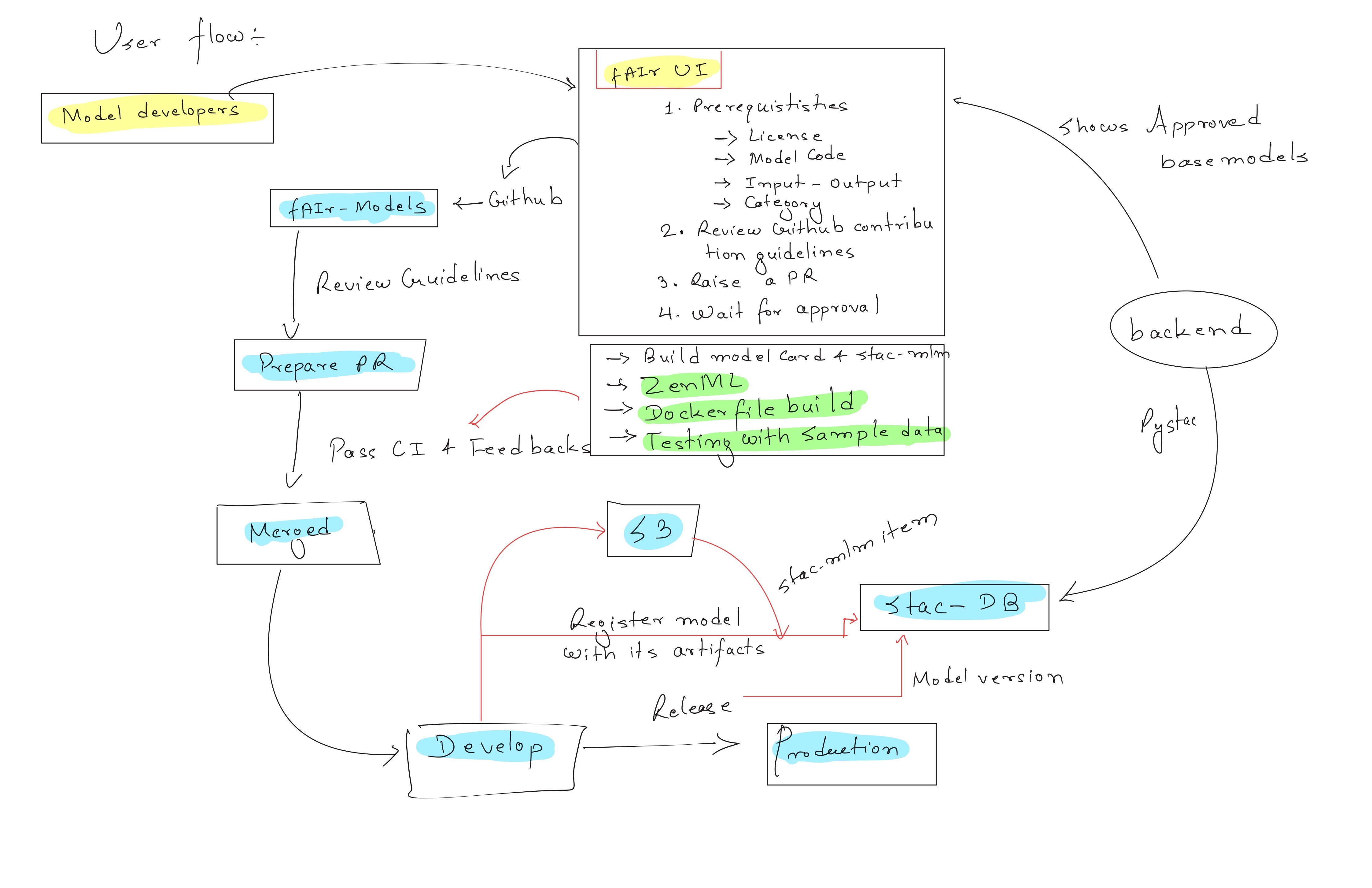

fAIr-models workflow

1. Base Model Registration (PR workflow)

flowchart TD
    A[Model Developer] -->|Prepares PR| B[fAIr-Models GitHub]
    B -->|CI: build, validate, test| C{Review}
    C -->|Merge| D[Post-merge CLI / CI]
    D --> E[Build + push Docker image]
    D --> F[Upload weights to S3]
    D --> G[Register STAC item in base-models]
    G --> H[STAC: base-models/model-name v1]

2. Finetuning (ZenML pipeline)

flowchart TD
    A[User picks base model + dataset] --> B[fAIr Backend]
    B -->|Read STAC items| C[Validate compatibility]
    C --> D[Generate ZenML YAML config]
    D --> E[ZenML Pipeline in model Docker]
    E --> F[load_data]
    E --> G[preprocess_data]
    E --> H[train_model]
    E --> I[evaluate_model]
    H --> J[ZenML Model Control Plane]
    I --> J

3. Promotion to STAC

flowchart TD
    A[User picks best version] --> B[fAIr Backend]
    B --> C[ZenML: set stage = production]
    B --> D[StacCatalogManager]
    D --> E[Build STAC MLM item]
    D --> F[Deprecate previous version]
    D --> G[Add Version Extension links]
    E --> H[STAC: local-models/model-v3 production]
ZenML action STAC effect
Promote to production Create item, deprecate previous
Archive version Set deprecated: true on item
Delete version Remove item from collection
Delete model Remove all items + clean up

4. Inference

Works for both base models and local models. The STAC item always has enough information to run inference: model weights, inference runtime, input/output spec.

Identity Model

Concept Example ZenML STAC
Base model unet-segmentation Not in ZenML MCP Item in base-models
Finetuned model unet-segmentation-finetuned-banepa ZenML Model (many versions) Item(s) in local-models
Specific version unet-segmentation-finetuned-banepa v2 ZenML Model Version 2 Item unet-segmentation-finetuned-banepa-v2
Dataset buildings-banepa-segmentation Not in ZenML MCP Item in datasets

Infrastructure

Component Local Production
STAC Catalog pystac JSON catalog stac-fastapi + pgstac
ZenML SQLite ZenML Server (PostgreSQL)
Orchestrator local Kubernetes
Artifact Store local filesystem S3
Experiment Tracker MLflow MLflow
Container Registry local Docker ghcr.io
Architecture Decisions
  1. STAC replaces ZenML Model Registry : STAC is a downstream publish target via StacCatalogManager, not a ZenML stack component.
  2. STAC item = self-sufficient source of truth : contains everything needed to run training or inference.
  3. Finetuned models share parent pipeline code : only weights differ between base and local models.
  4. Standards over custom fields : mlm:tasks, keywords, classification:classes instead of custom fair:* fields.
  5. YAML-based training & inference : every run is driven by a generated config logged as a ZenML artifact.
  6. MLM Processing Expression for dispatch : pre_processing_function / post_processing_function use Python entrypoints.
  7. Pipeline contract : every model must export training_pipeline and inference_pipeline as @pipeline-decorated functions.
